INFORMATION DETAILS
ID: 13544378
|
Year: 2014
|
Make: S.Houle
|
Model: Tree Shears TS-16
|
Type: New
|
| MSRP:
9349 |
Engine Size - cc: N/A |
| Length: | 60'' (150 cm) |
| Width: | 58'' (147 cm) |
| Tree Cutting Power: | 85,000 lb @ 3000 PSI / 38,000 kg @ 206 bars |
| Working angles: | 0-110º |
| Blade: | RT-400 steel |
| Valve: | Solenoid 2 functions 1 command. |
| Hydraulic Outlet: | 1 |
| Minimum Oil Flow: | 20-25 GPM @ 2750 PSI / 90-114 l/m @ 190 bars |
SELLER DESCRIPTION

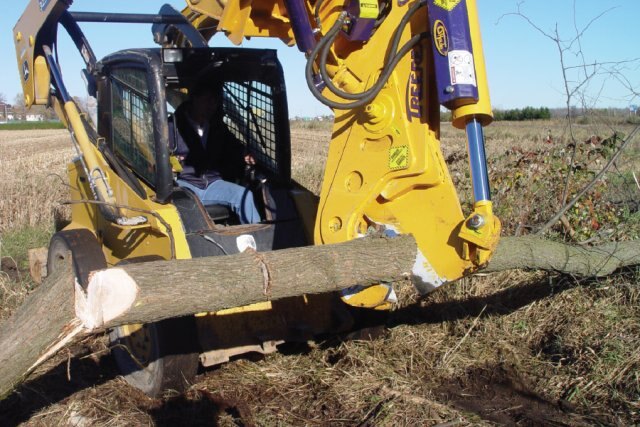

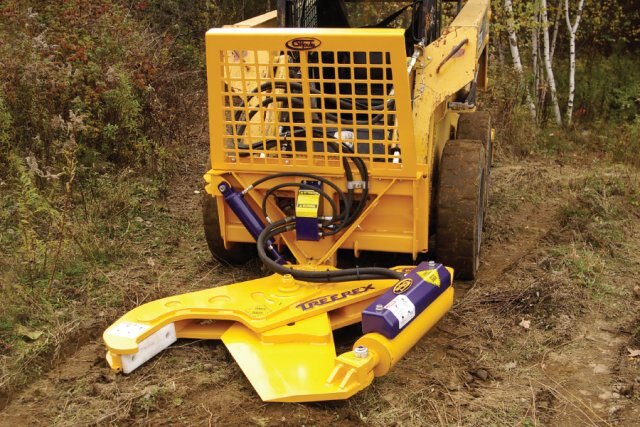

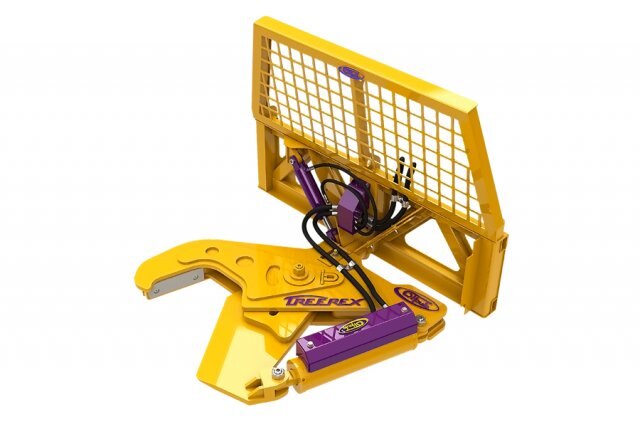

S.Houle Fabrication offers two tree shears, a 8” and a 16” cutting capabilities.
Available in tractor loader mount or skid steer mount
16'' TREE SHEAR
TS16 TS16SS
TRACTOR LOADER MOUNT SKID STEER MOUNT
-
Cuts up to 16” Capacity
-
Cutting power up to 85,000 PSI
-
Requires a minimum of 75 HP tractor, skid steer or tele-handler with minimum hydraulic flow 75-95 LM (20-25 GPM) @ 2700 – 3000 PSI
-
RT-400 Steel frame and a blade with an RT-400 steel cutting edge that is also reinforced to eliminate distortion
-
Single blade eliminates center cut splinters
-
Blade moves from left to right for better operator visibility
-
Concave jaw design
-
3” x 8” hydraulic tilt cylinder rotates cutter head 110 degrees
-
Massive 3” blade pivot pin provides unmatched rotational strength.
-
All pivot points are greaseable.
-
A single electro-hydraulic valve allows you to switch from one cylinder to the other
-
Tractor loader mount requires optional loader mounting brackets., extra.
-
Skid steer mount comes with universal skid steer mounting bracket
-
Weight 1550 lbs.(705kg)
|
|
OPTIONS: |
|
MODEL |
DESCRIPTION |
LIST PRICE |
|
CA011604E02 |
Brush Guard for TS16 |
$599 |
|
31031 |
High Flow Solenoid 3500 + PSI |
$439 |
